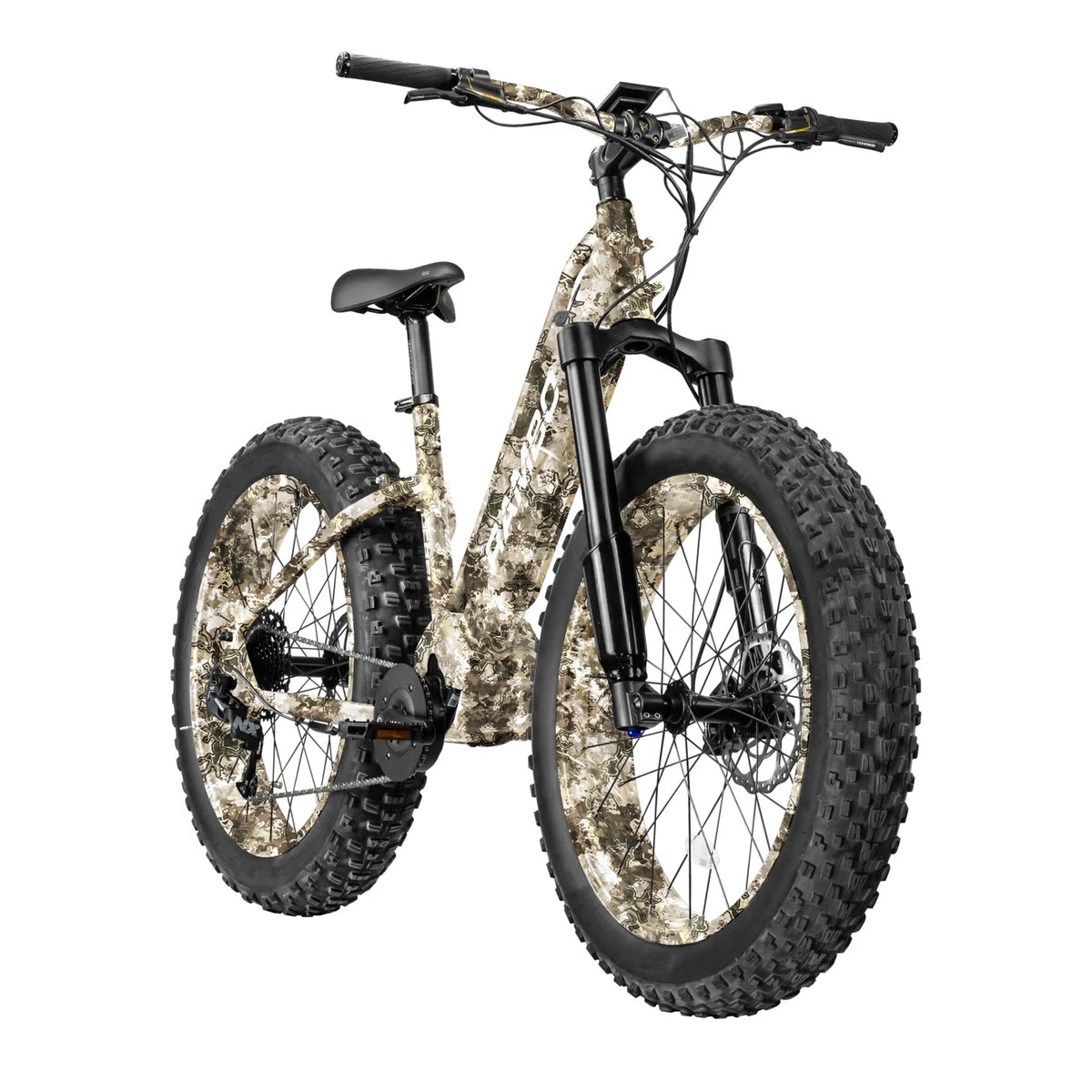

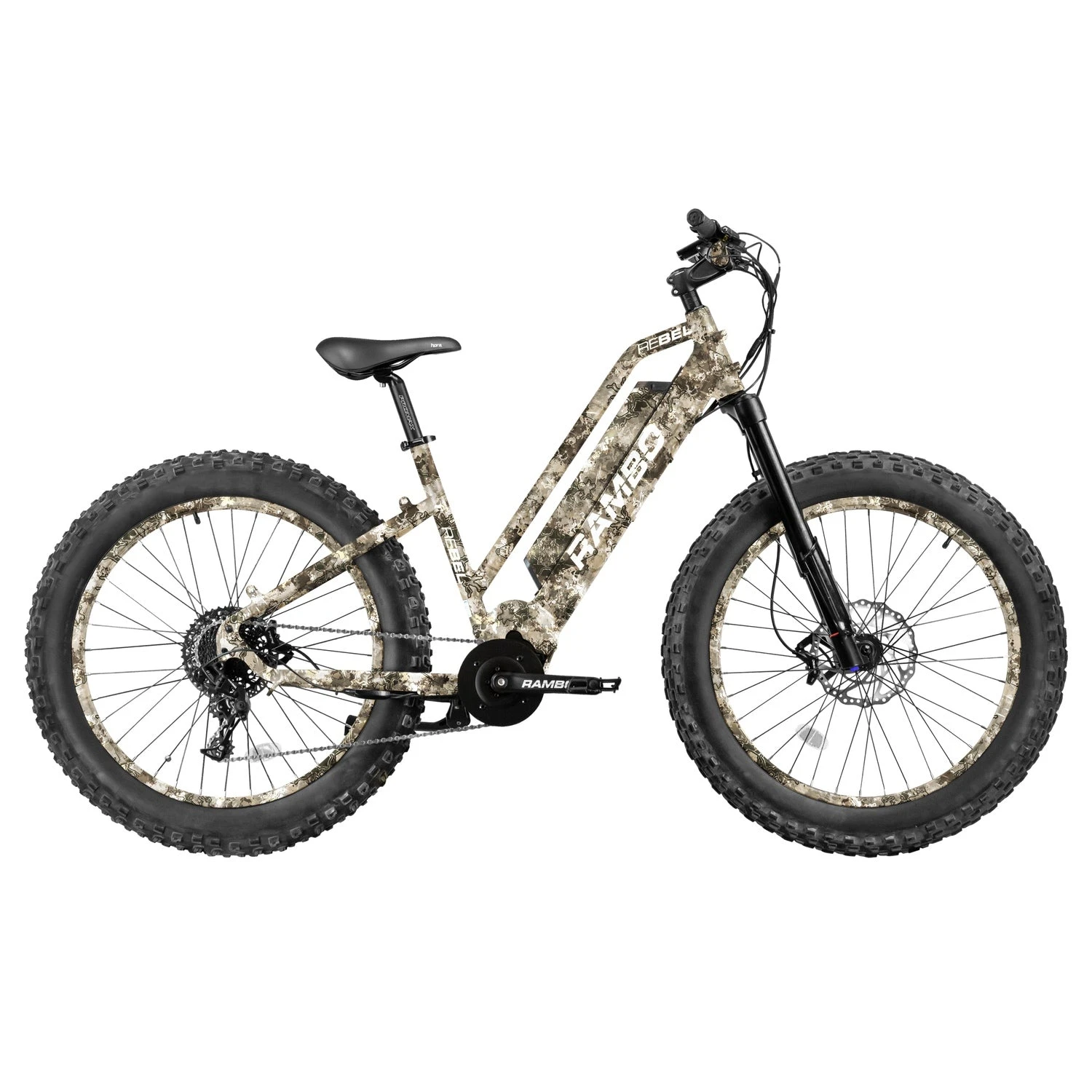

Rambo Rebel Step Through

The Rebel Step Thru was designed by customer request.  Delivering the Rebel 1000w ebike with a step thru frame makes saddling up even easier then before.  Delivering it all in one solid bike featuring a a Bafang 1000w High Torque Mid Drive motor, 11 gears, topped with a 48v 21AH battery – no terrain is going to stop you! Paired with 26×4.5” fat tires and 4 Piston Hydraulic brakes, you have the recipe of a perfect hunting bike. From the mountains to the flat prairie, The Rebel Step Thru is ready to deliver you to your stand!



OUR BATTERY

Rambo’s frame integrated batteries allow the battery sit lower on the bike frame than a standard battery. Our integrated battery packs use the very best lithium ion batteries. Our integrated batteries are designed to be universal and allow you to upgrade to a whopping 21-amp hour battery! The 21-amp hour battery can give you a max distance of 48 miles! Not all batteries are equal. In fact, not even close. Many e-bikes that are advertised on the market today at a certain amp hour fall very short. Real life tests show Rambo outperforms again and again!



BAFANG 1000W HIGH TORQUE MID-DRIVE MOTOR

Rambo chose to use Bafangs BBSHD powerful mid-drive motor. The BBSHD has a nominal power rating of 1000W and a peak power rating of 1500W. The BBSHD has a reduction ratio of 1: 21.9 and a maximum torque of 160 N.m, Giving the rider great explosive force when taking off.  This motor is suitable for riding on terrain such as mountains, sand and for those adrenaline seeking riders who love power.



• MODEL #: 1000w XPST
• WEIGHT: 69 lbs.
• FRAME: Aluminum Alloy 6061
• PAINT: TruTimber Viper Western Camo
• MOTOR: Bafang 1000W High Torque Mid-Drive

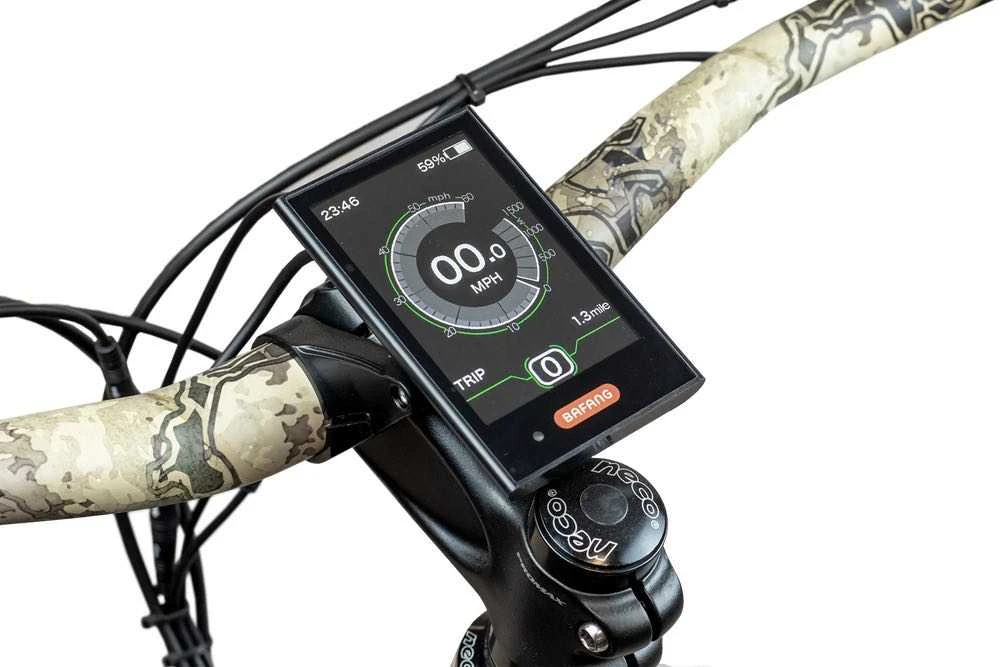

• DIGITAL DISPLAY: Bafang DPC18 LCD Screen
• BATTERY: 48V 21ah
• FORK: GT860 AIR

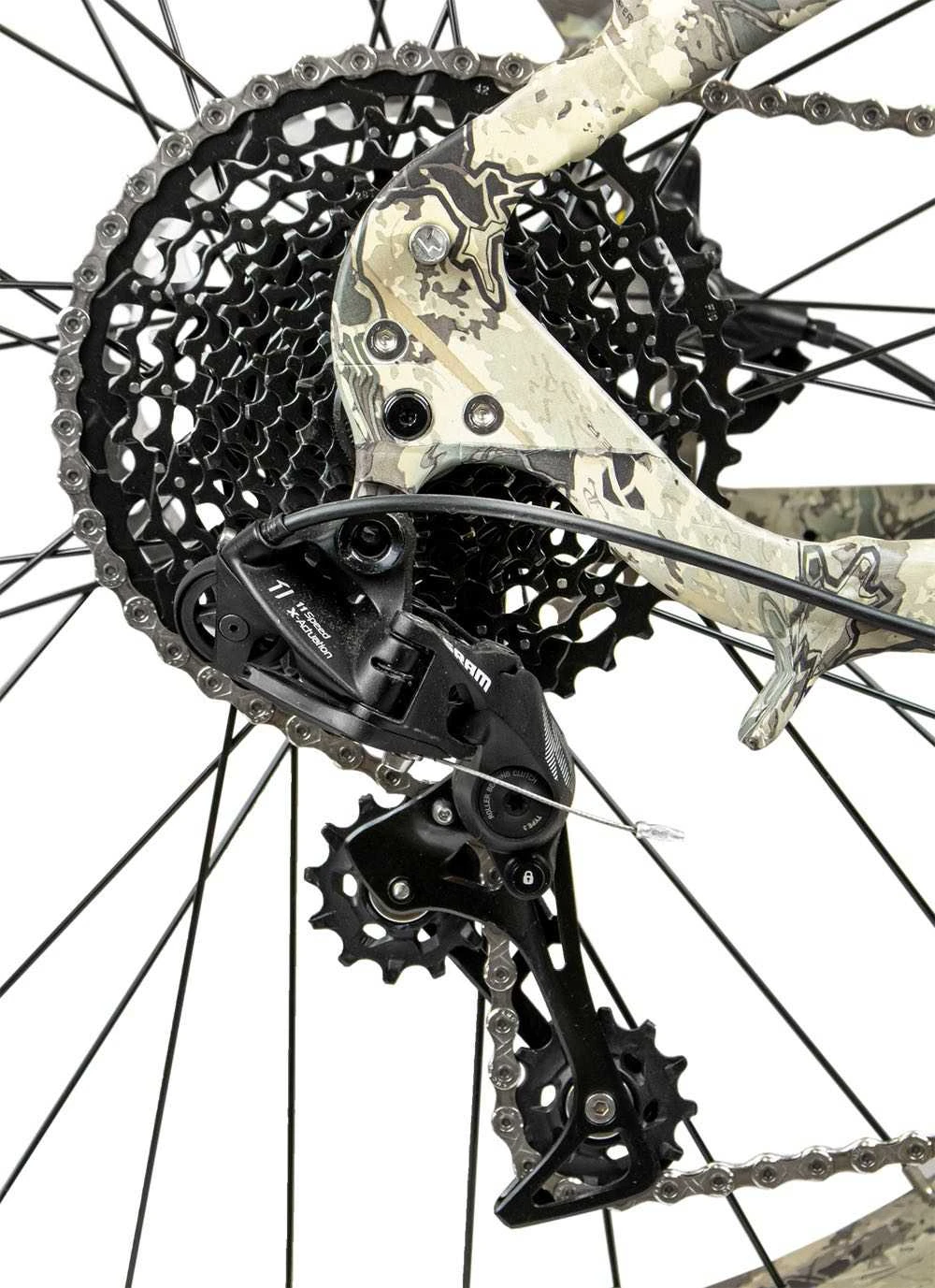

• Rear Cassette: SRAM NX PG-1130 11-42T
• FRONT HUB: JT-M9CF 150mm Sealed
• REAR HUB: JT-M9CF 150mm Sealed

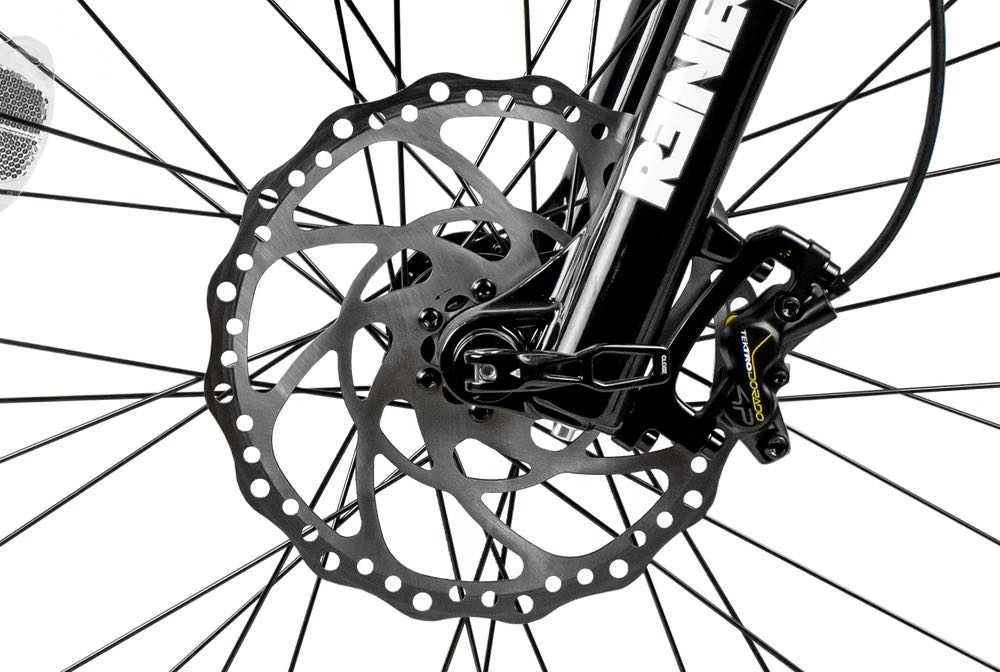

• FRONT BRAKE: Tektro HD-E725 4 Piston Hydraulic 203mm

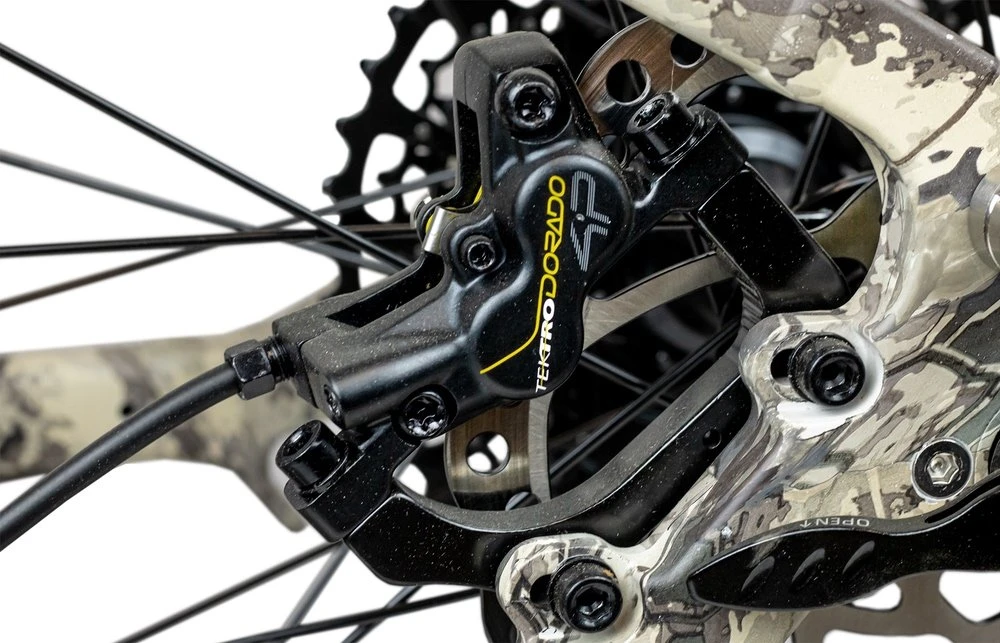

• REAR BRAKE:Tektro HD-E725 4 Piston Hydraulic 180mm
• CHAIN RING: Rambo Custom Built 36t Narrow Wide
• TIRE: 26” x 4.5”
• RIM: Double Wall W/O holes 100mm wide
• PEDAL: WellGo B807DU

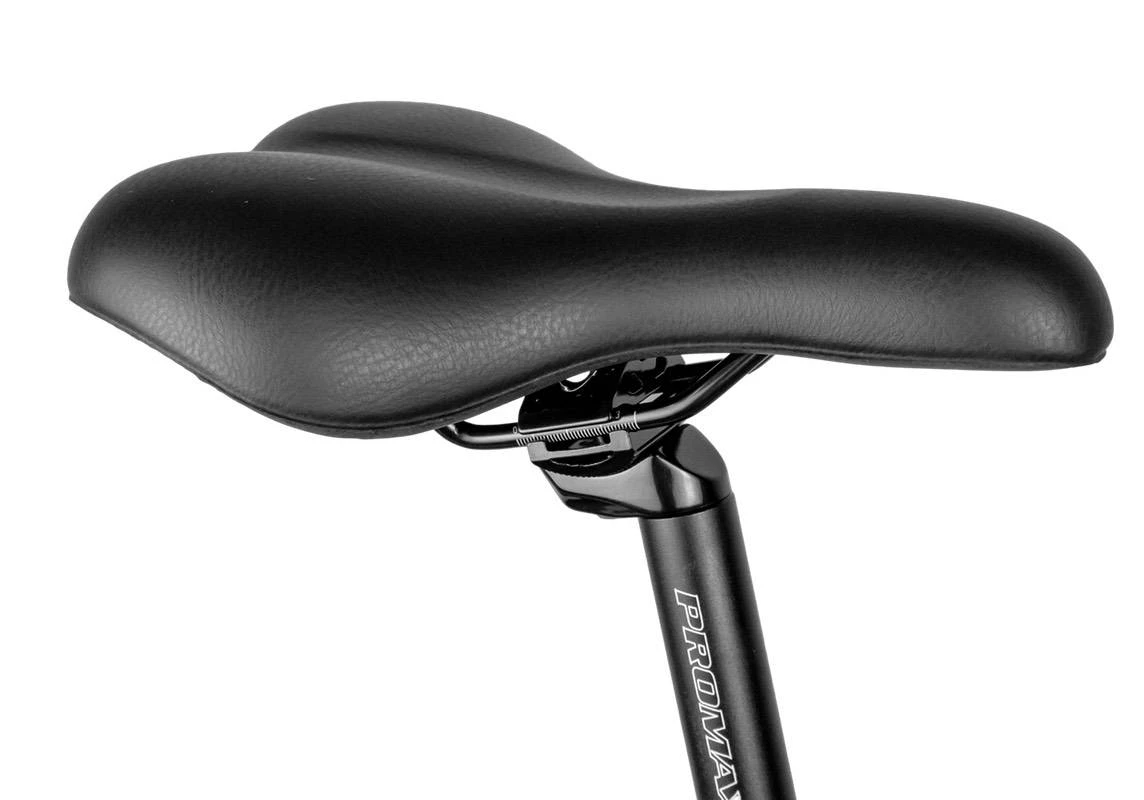

• SADDLE: Selle Royal A027HEO
• HANDLEBAR: ProMax 770mm
• STEM: ProMax MA-50
• GRIP: Sram XX1 100mm/122mm Lock On
• MAX SPEED: 28mph
• RANGE: Up to 48 miles
• STAND OVER HEIGHT: 31″
• FRAME SIZE: 19″ Medium
• WEIGHT CAPACITY: 300 Lbs.
